4G · BLE · LoRa · GPS
Every lock,
Every lock,
secured & online.
Full-stack smart-lock systems.
LTE Cat.1 · Online
🔋 Battery 100%
🔒 Sealed · Cut-alarm armed
Product Matrix
Products & full specifications
Real product photography paired with the complete spec sheet.

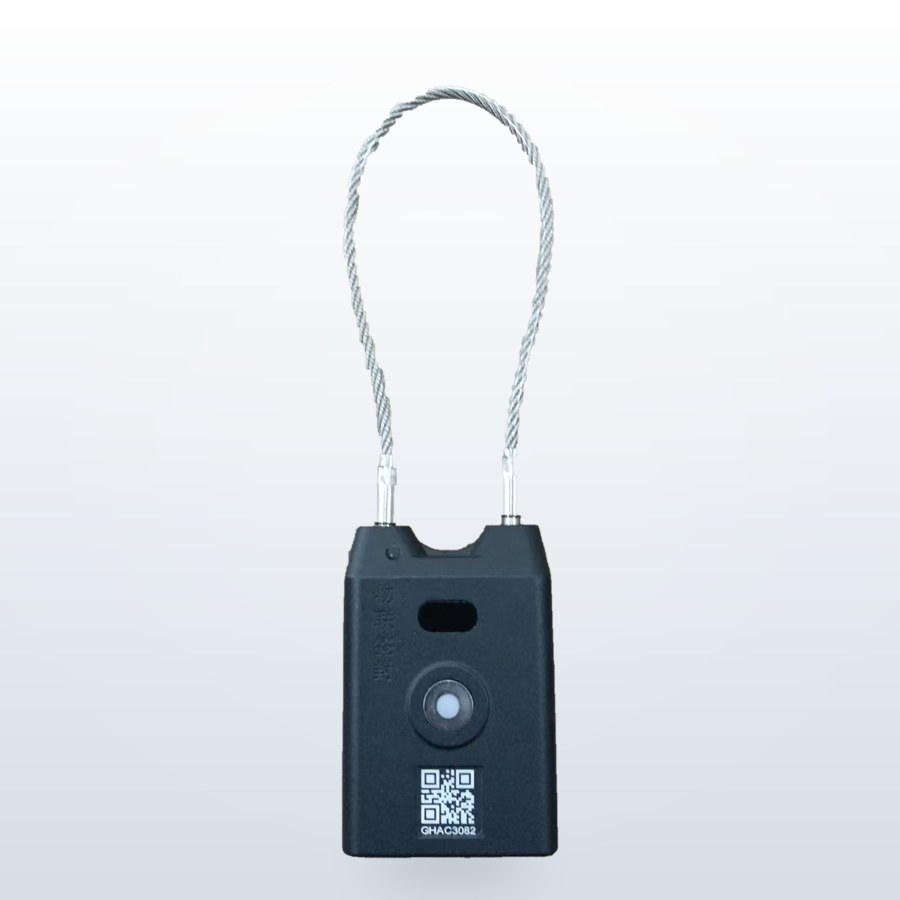

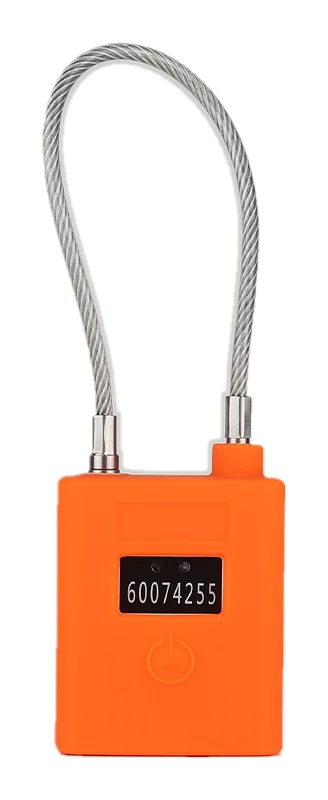

Cargo Seal
Click to enlarge
Click to enlarge4G-BLE-093 / LORA_BLE_098

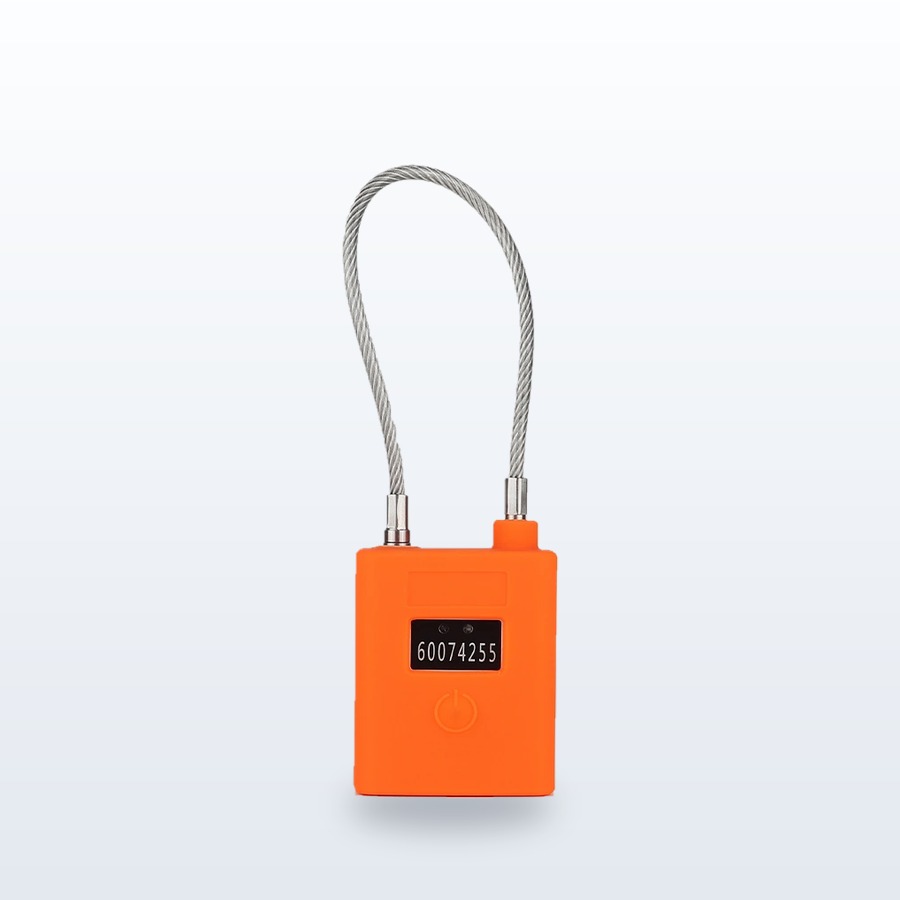

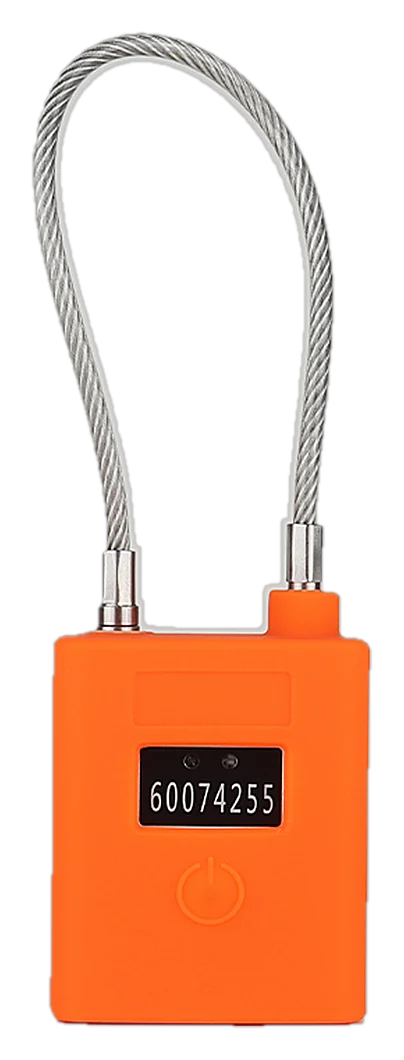

Steel-Cable Cargo Lock
High-strength steel-cable electronic seal.
| Radio | LTE Cat.1 + BLE |
|---|---|
| Positioning | Cell LBS + phone GPS |
| Steel cable | Ø4mm × 380mm |
| Alarms | Cut / pry / low voltage |
| Power | ER18505 4000mAh |
| Display | Seal-No. + QR display |
| Online mode | Deep sleep, 4 wake modes |
| Rating | IP67 |
LTE Cat.1LoRaGeo-fenceCut alarmIP67
Gate Padlock
Click to enlarge
Click to enlarge4G-BLE-093 · Shackle

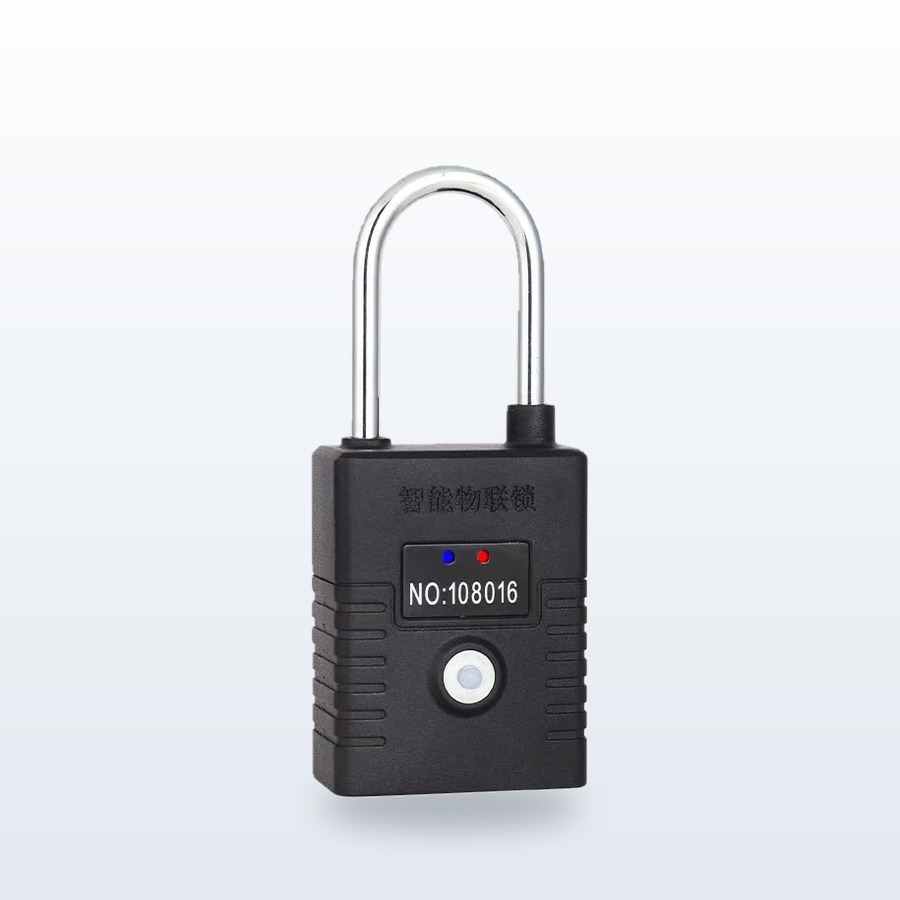

Smart Shackle Padlock
For unattended-site gates.
| Radio | 4G + BLE |
|---|---|
| Unlock | Work-order key / remote |
| Lock body | Alloy, ≈355g |
| Packaging | 180 × 105 × 55 mm |
| Alarms | Cut / pry / low voltage |
| Power | ER18505 4000mAh |
| Colours | Black / White |
| Rating | IP67 |
4G + BLEWork-order unlockPry alarmIP67≈355g

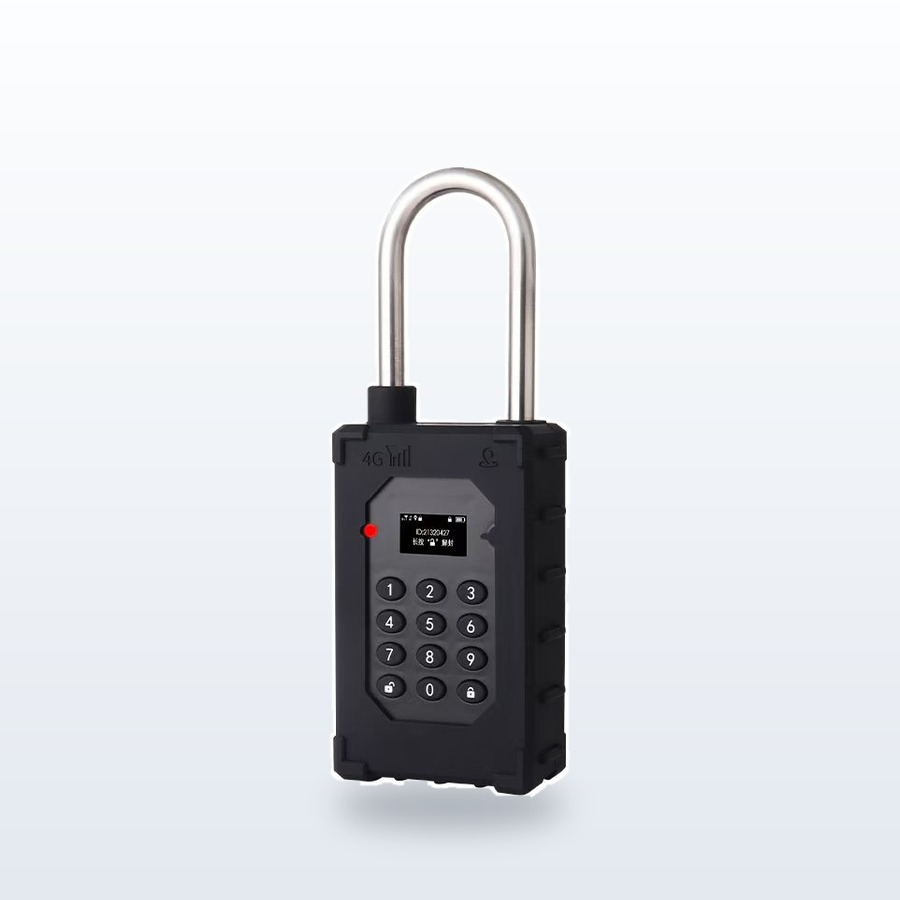

Keypad GPS Lock
Click to enlarge
Click to enlargeGPS_4G_096

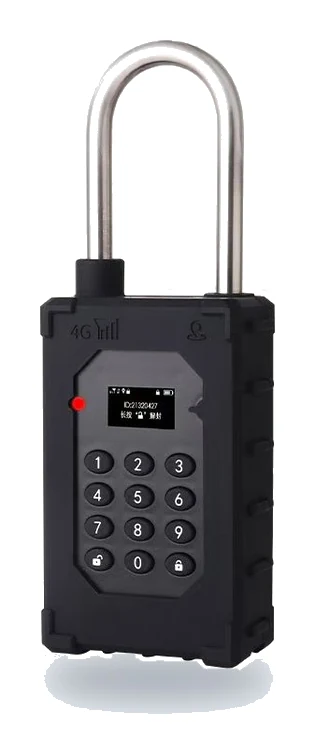

4G GPS Keypad Padlock
Standalone — no phone required.
| Radio | 4G LTE + BLE |
|---|---|
| Positioning | On-board GPS |
| Unlock | OTP keypad / BLE / remote |
| Display | OLED status display |
| Shackle | Long stainless shackle |
| Finishes | Black / chrome |
| Best for | Third-party haulage |
4G LTEGPSKeypad OTPOLEDNo phone needed

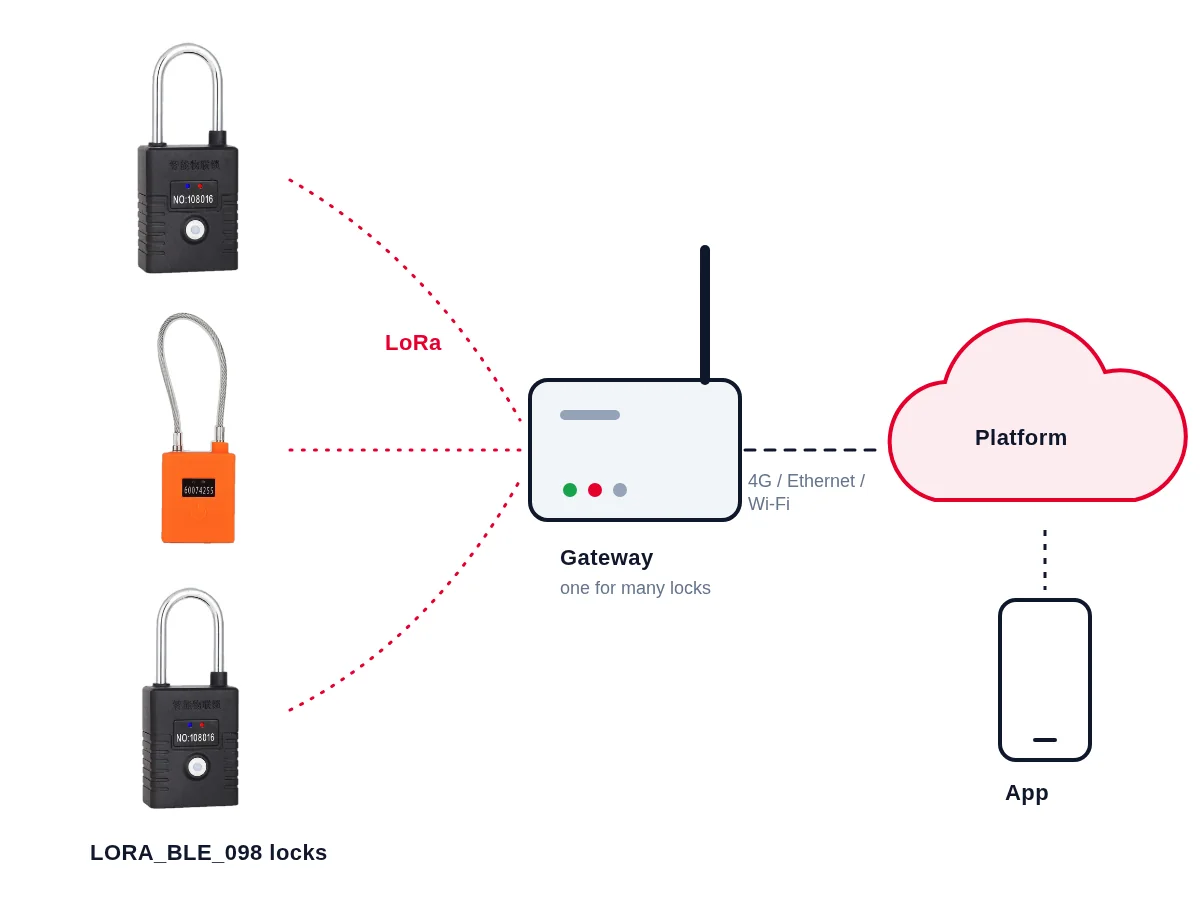

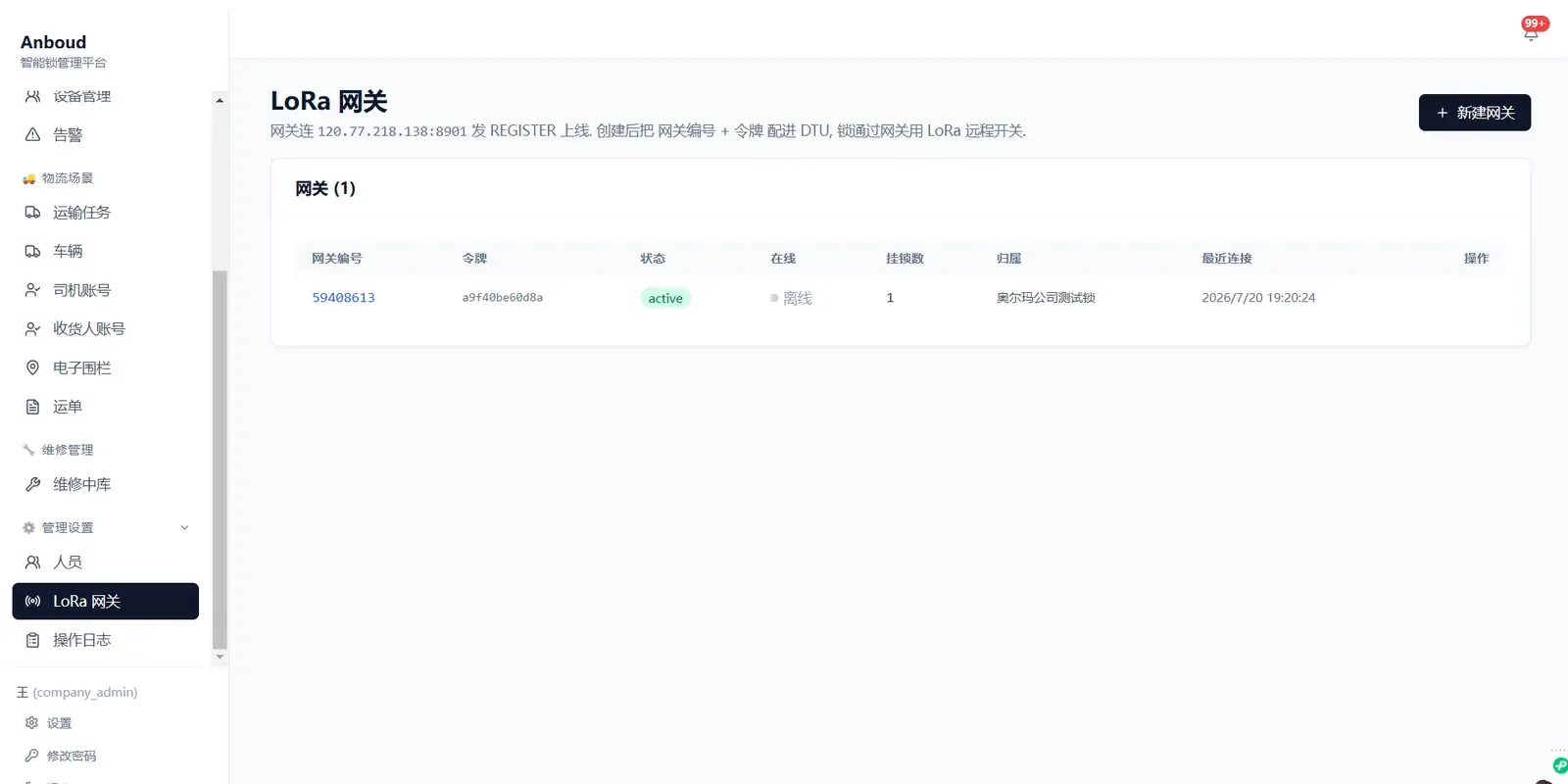

Vehicle Gateway
Click to enlarge
Click to enlargeLoRa-4G-GPS Gateway

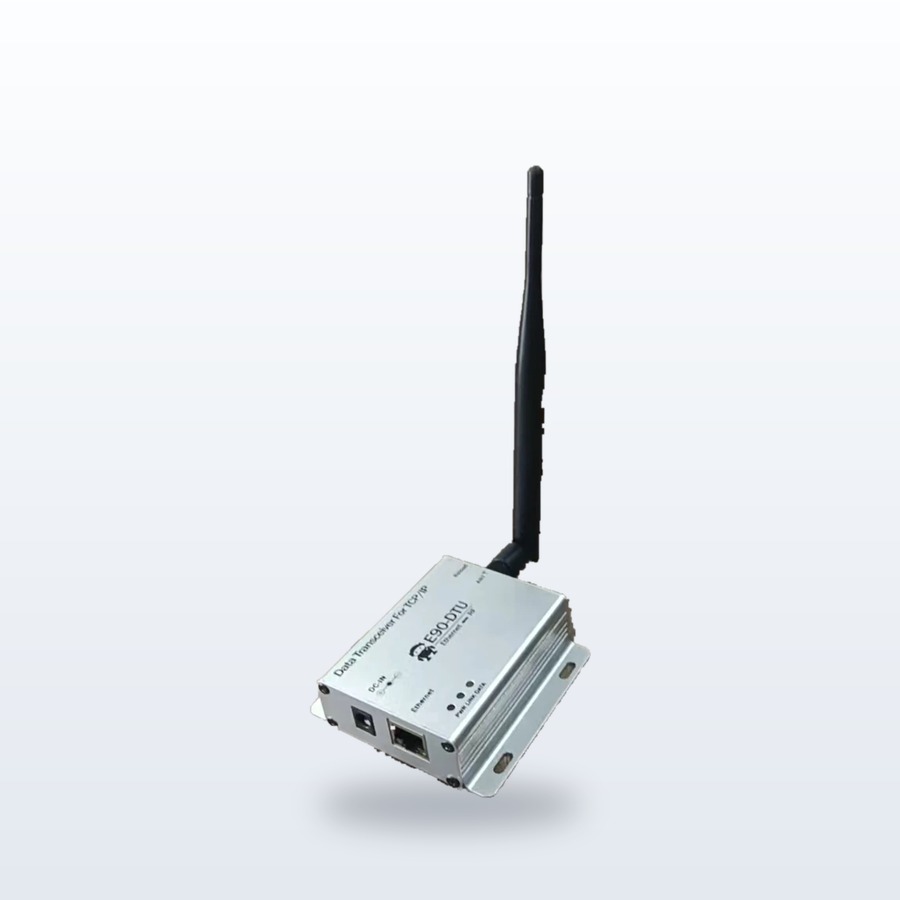

Vehicle Gateway
The hub for the whole vehicle.
| Radios | LoRa + 4G + GPS |
|---|---|
| Power | 12V / 24V vehicle |
| Capacity | One-to-many |
| Addressing | Address + channel + MAC |
| Geo-fence | Judged by gateway GPS |
| Benefit | One SIM per vehicle |
LoRa 900MHz4GGPSOne-to-many

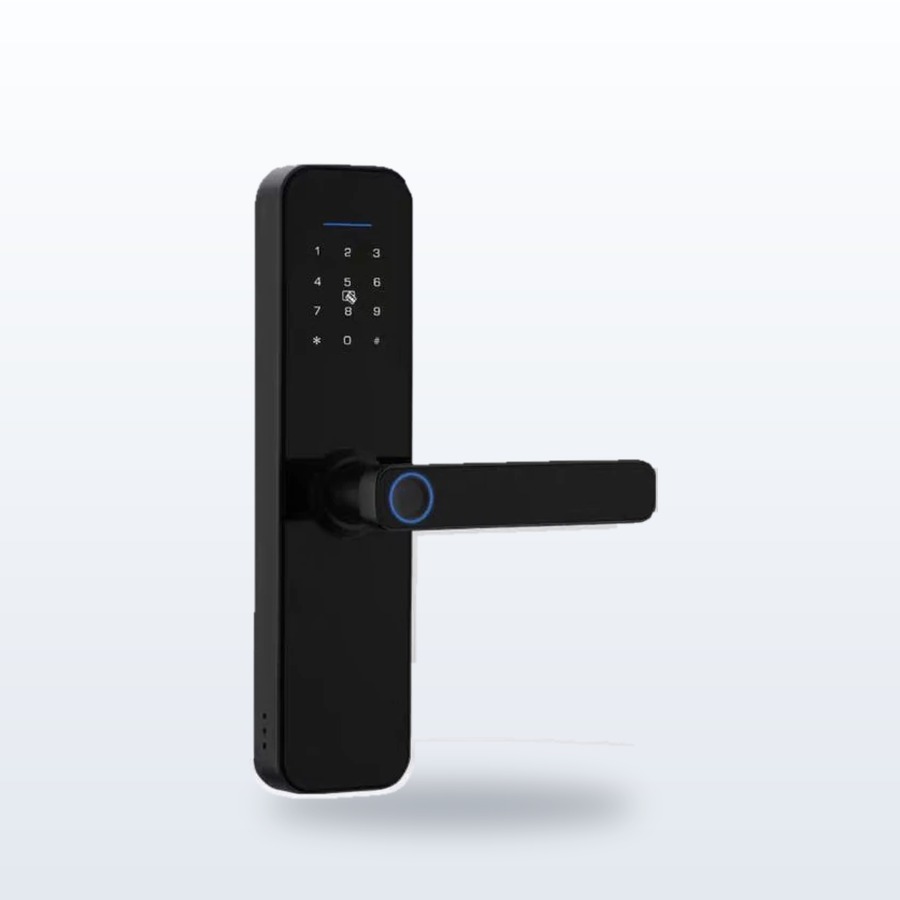

Smart Door Lock
Click to enlarge
Click to enlargeY8 / MC-08
Smart Fingerprint Door Lock
Four ways in, hotel-ready.
| Unlock | 5 methods |
|---|---|
| Fingerprint | ≤100, FAR <0.01% |
| Ecosystem | TTLock / Tuya / API |
| Handle | Free-turn |
| Material | Aluminium alloy |
| Power | 4 × batteries + USB |
| Fits | 30–58mm doors |
Fingerprint ≤100TTLock / TuyaAluminium

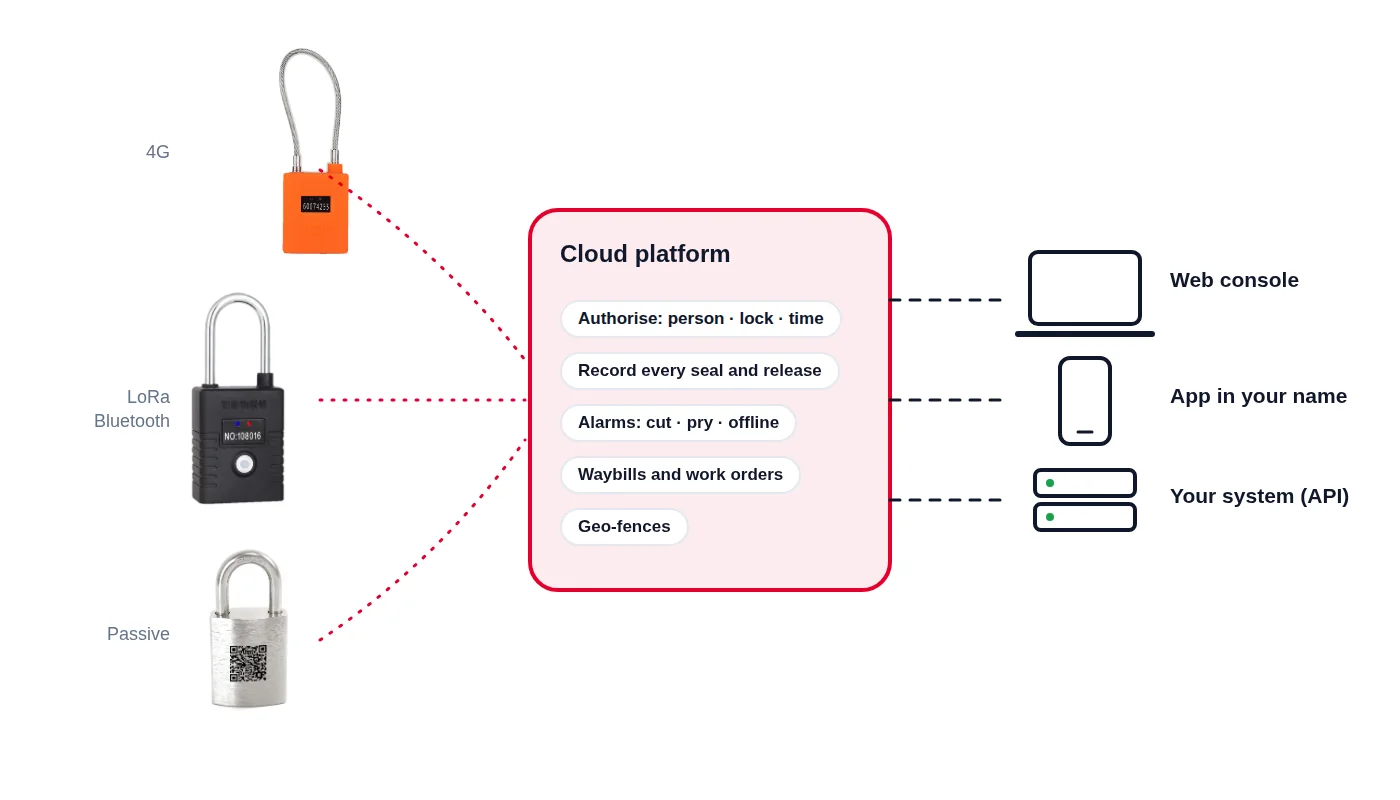

Management Platform

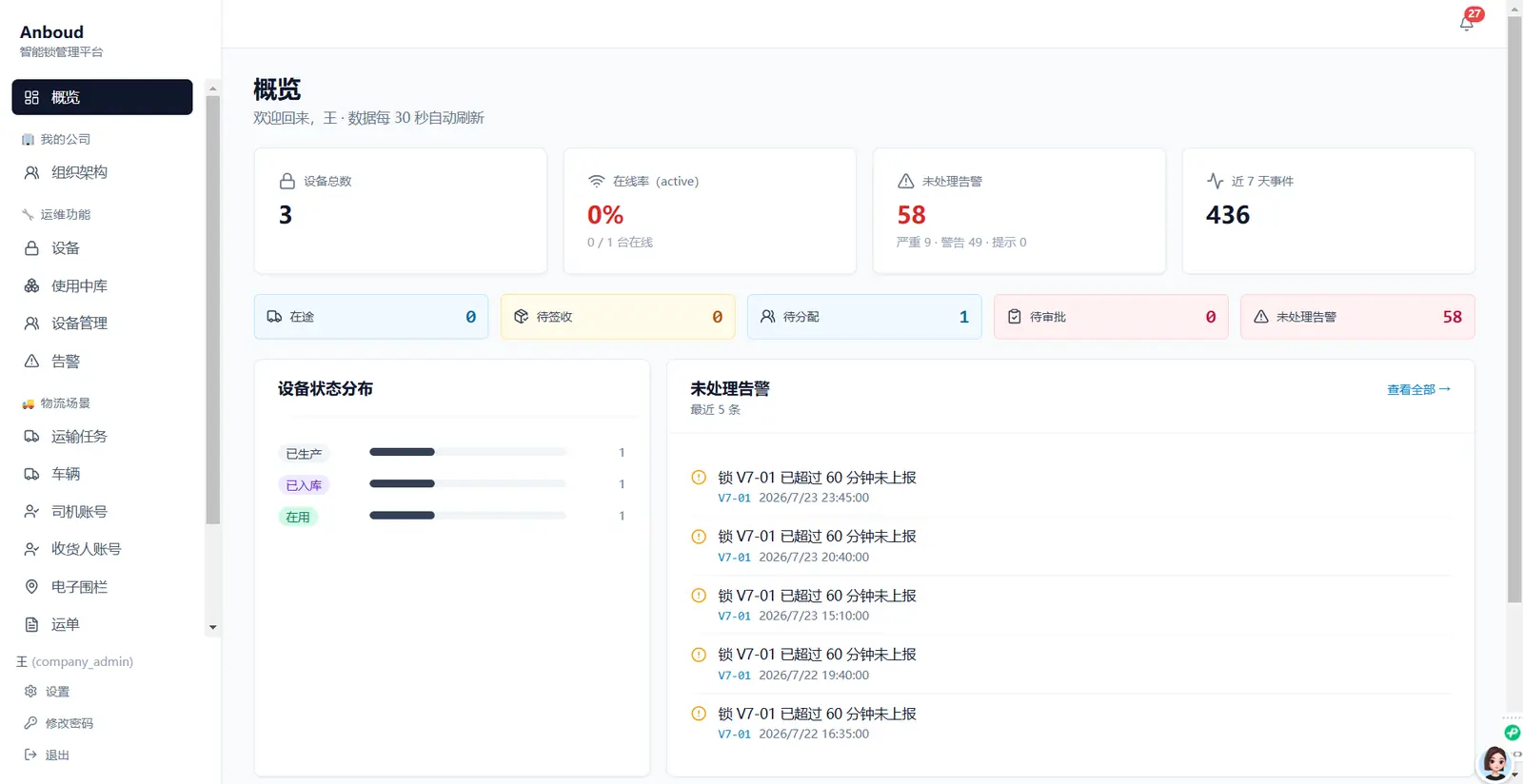

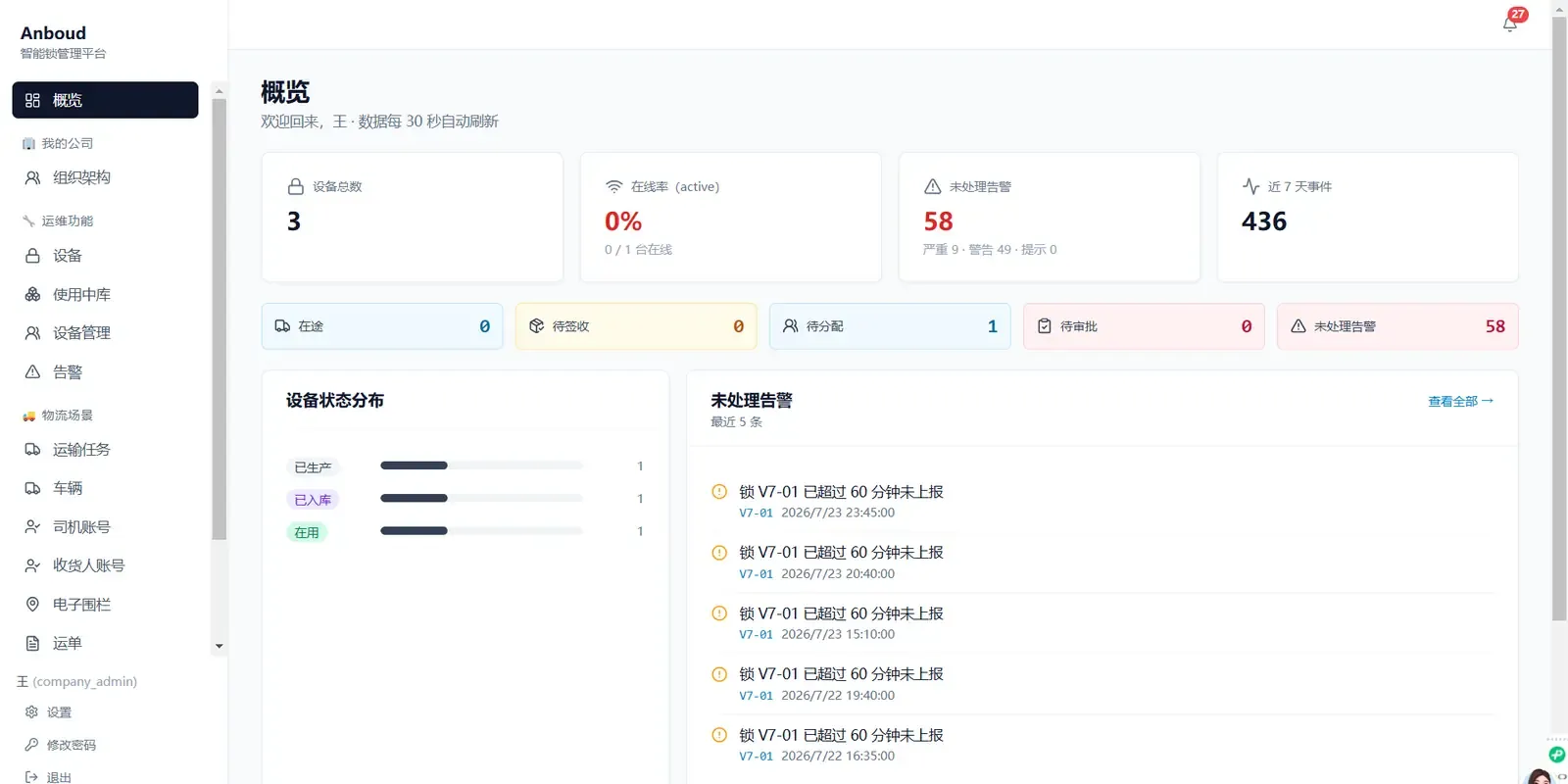

The platform that runs your locks
One place for every lock, task and alarm.
abdlock.com/dashboard
🔒

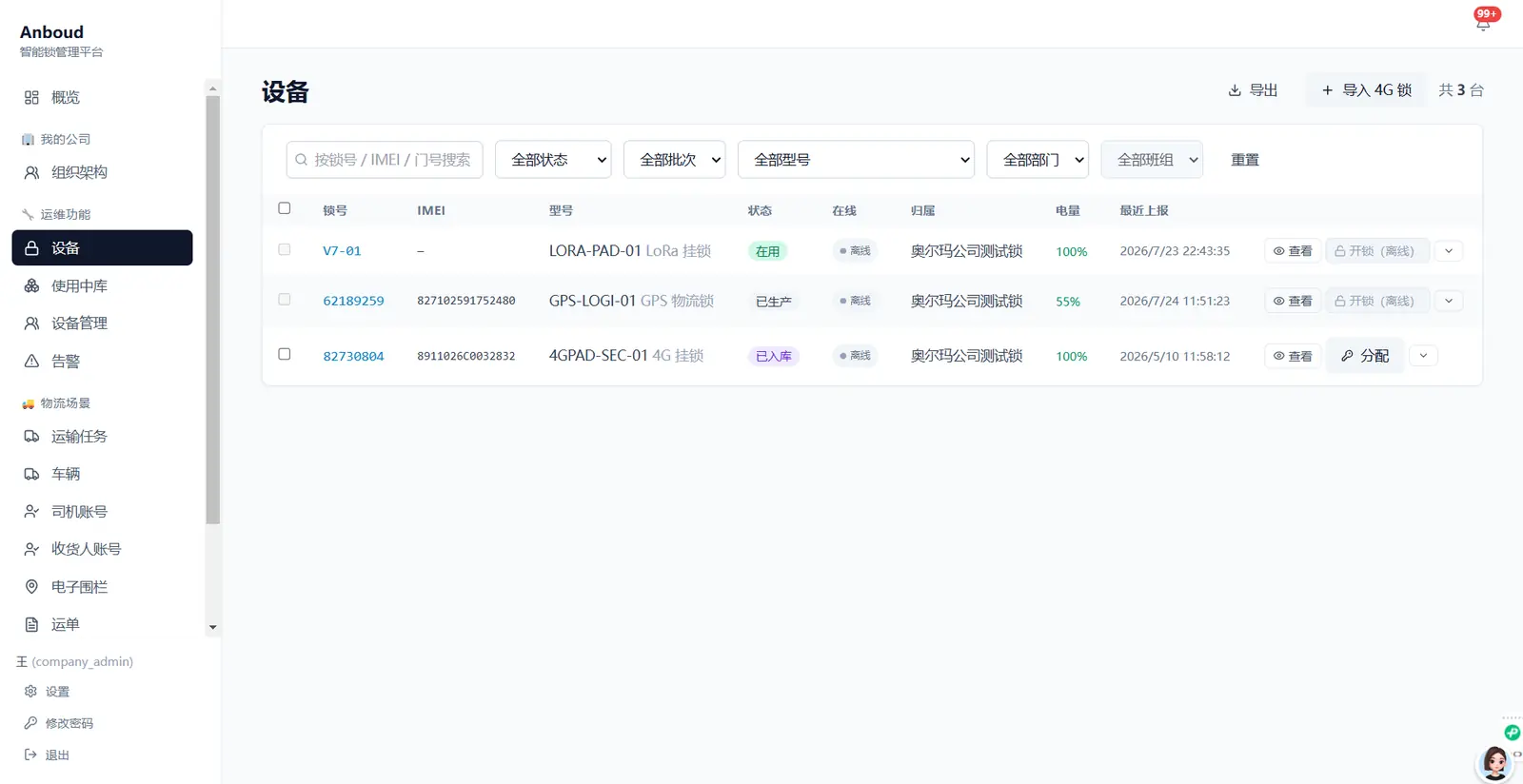

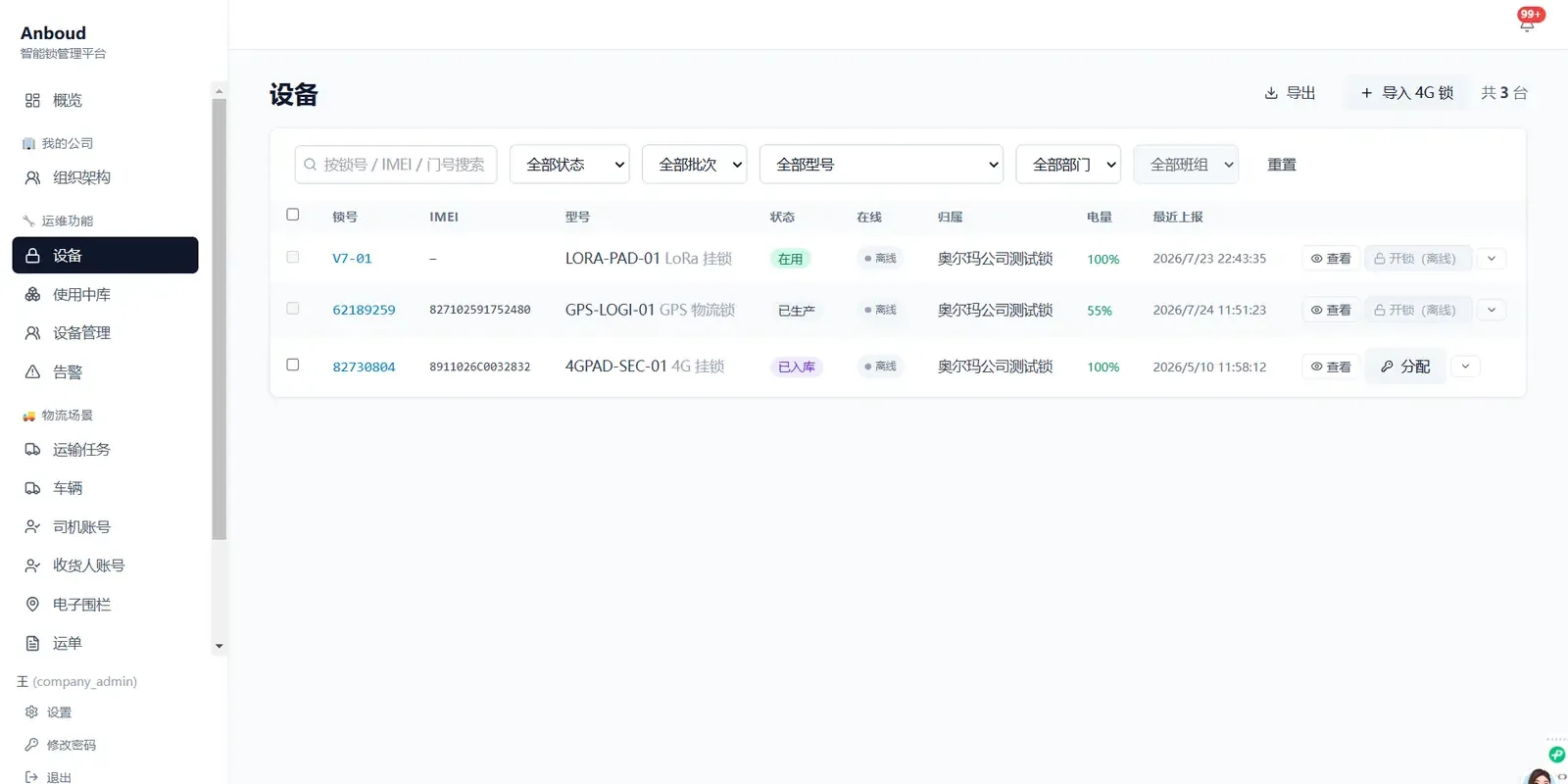

Device management
Register, bind and track every device.
🚚

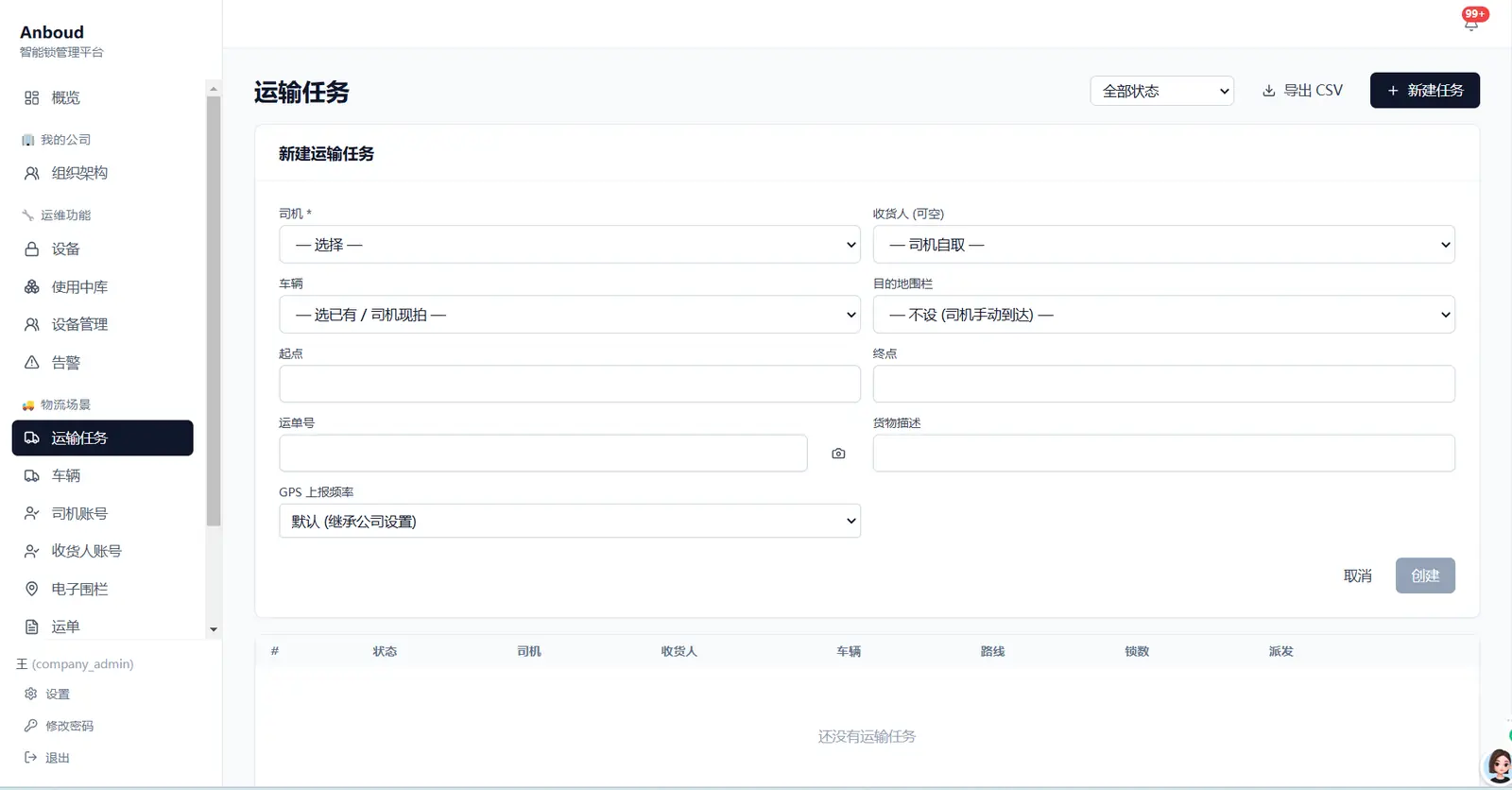

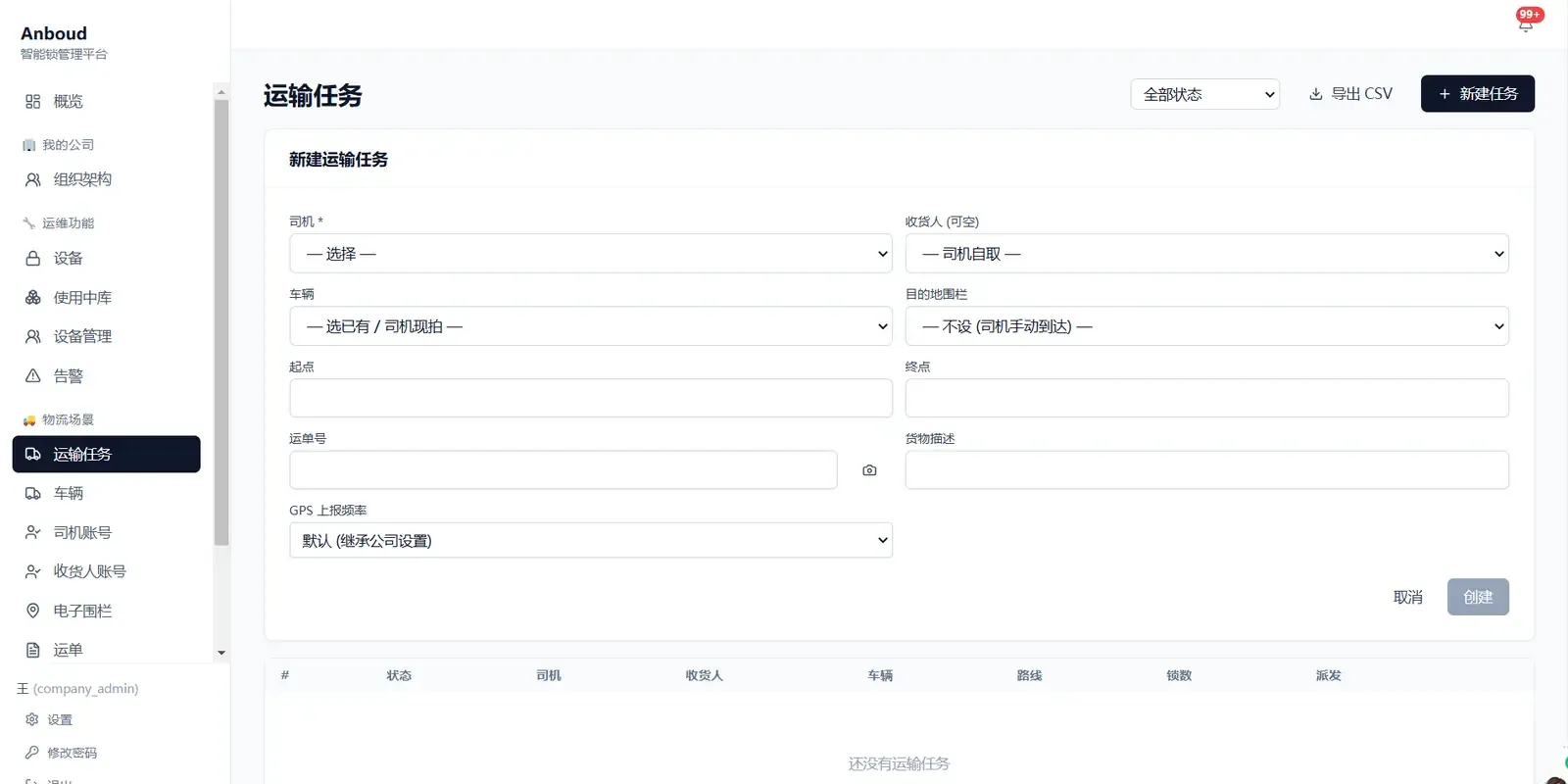

Transport tasks
One file per waybill.
📍

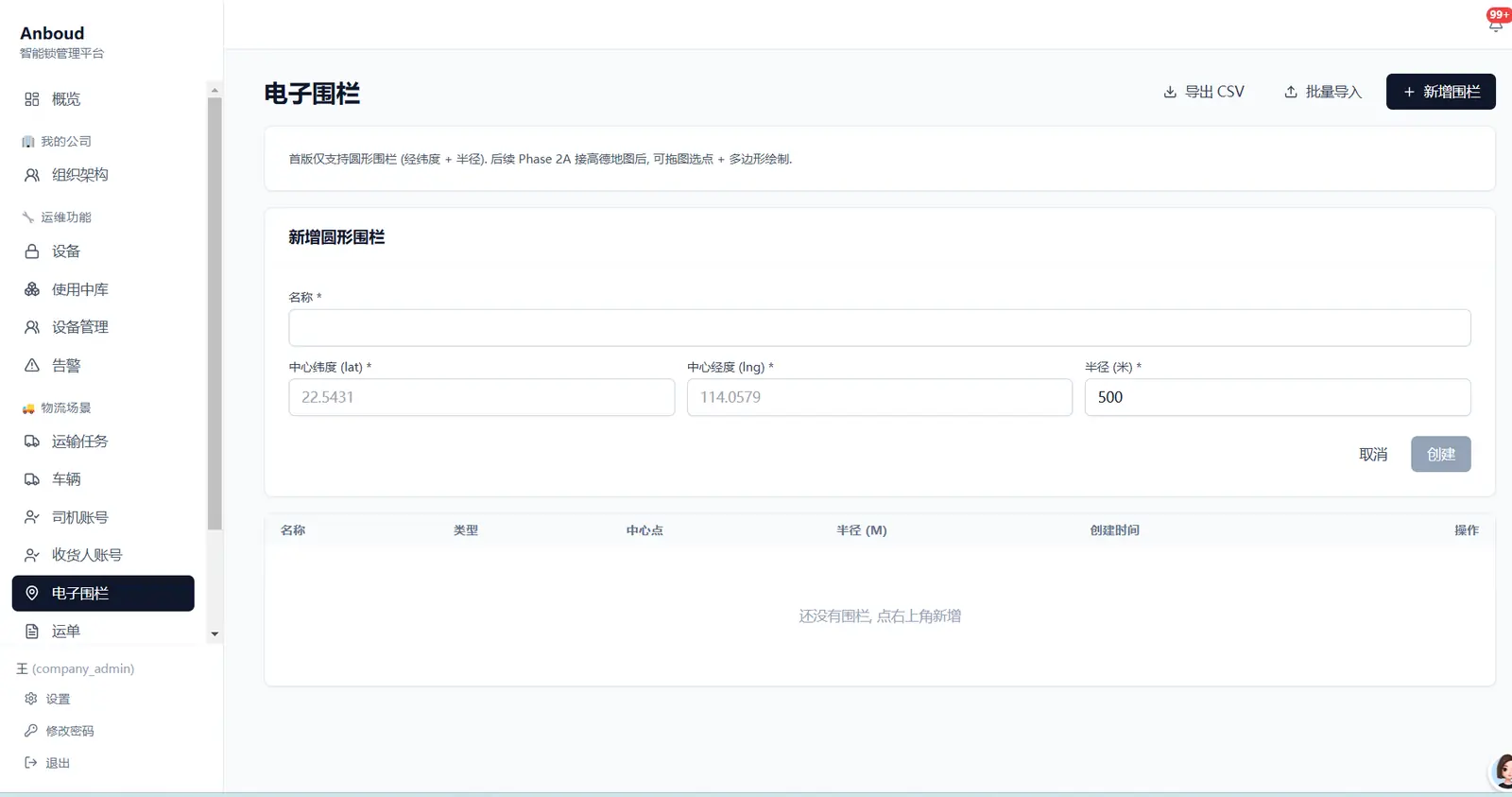

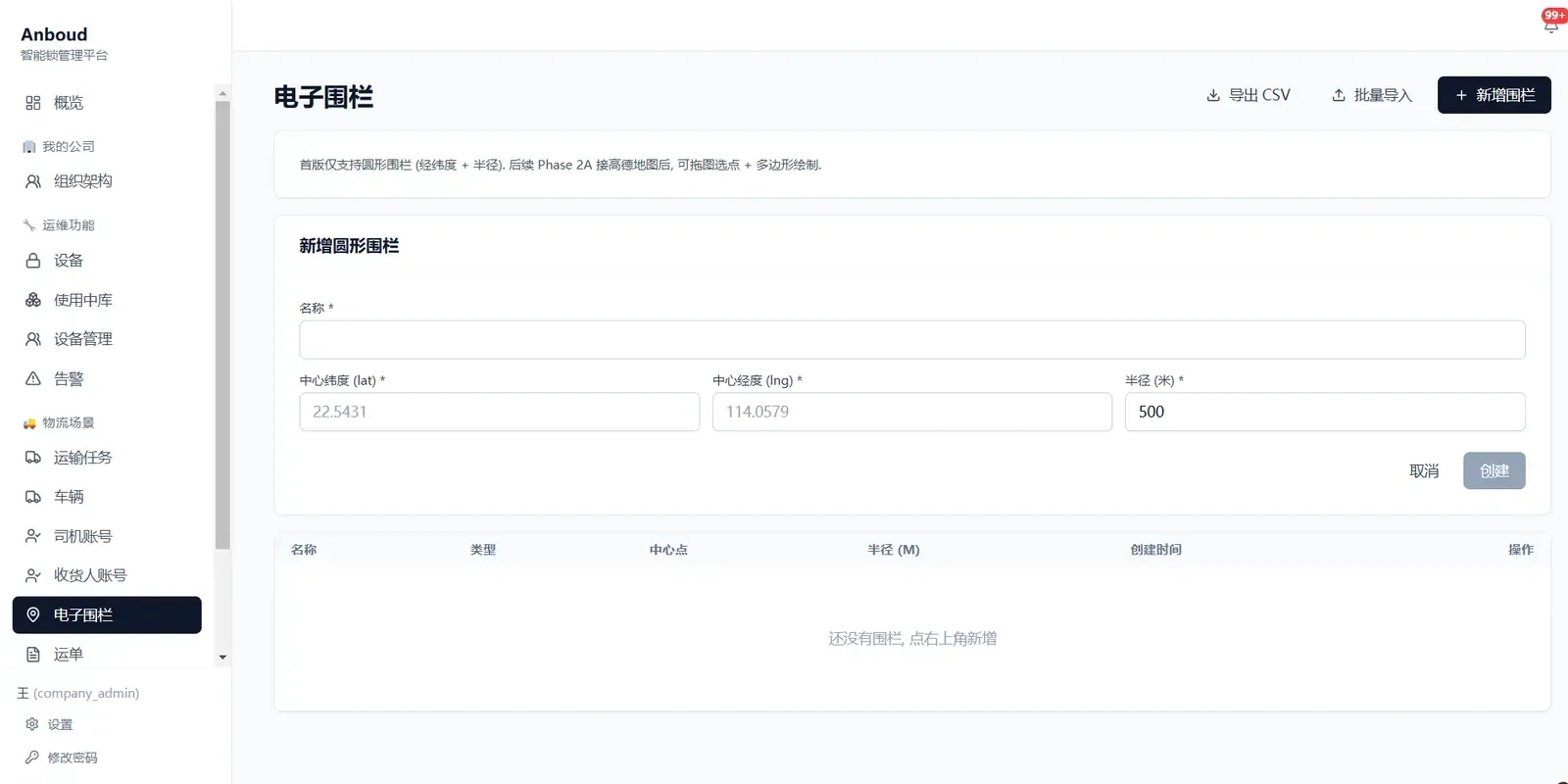

Geo-fencing
Position becomes a third key.
🧾
Work orders & approval
Access runs on work orders.
⚠️

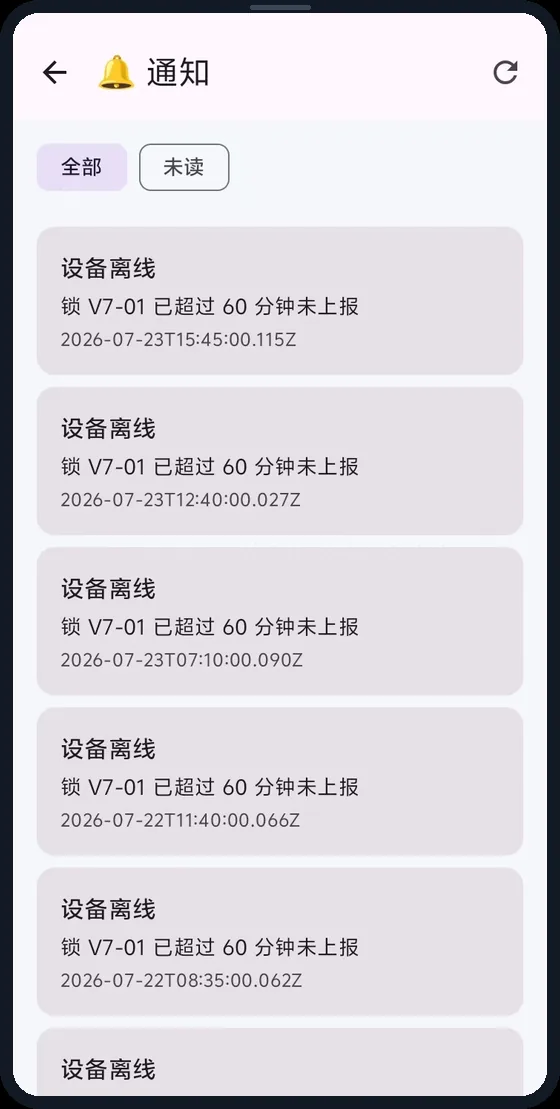

Alarm centre
Graded, pushed, closed out.
📑

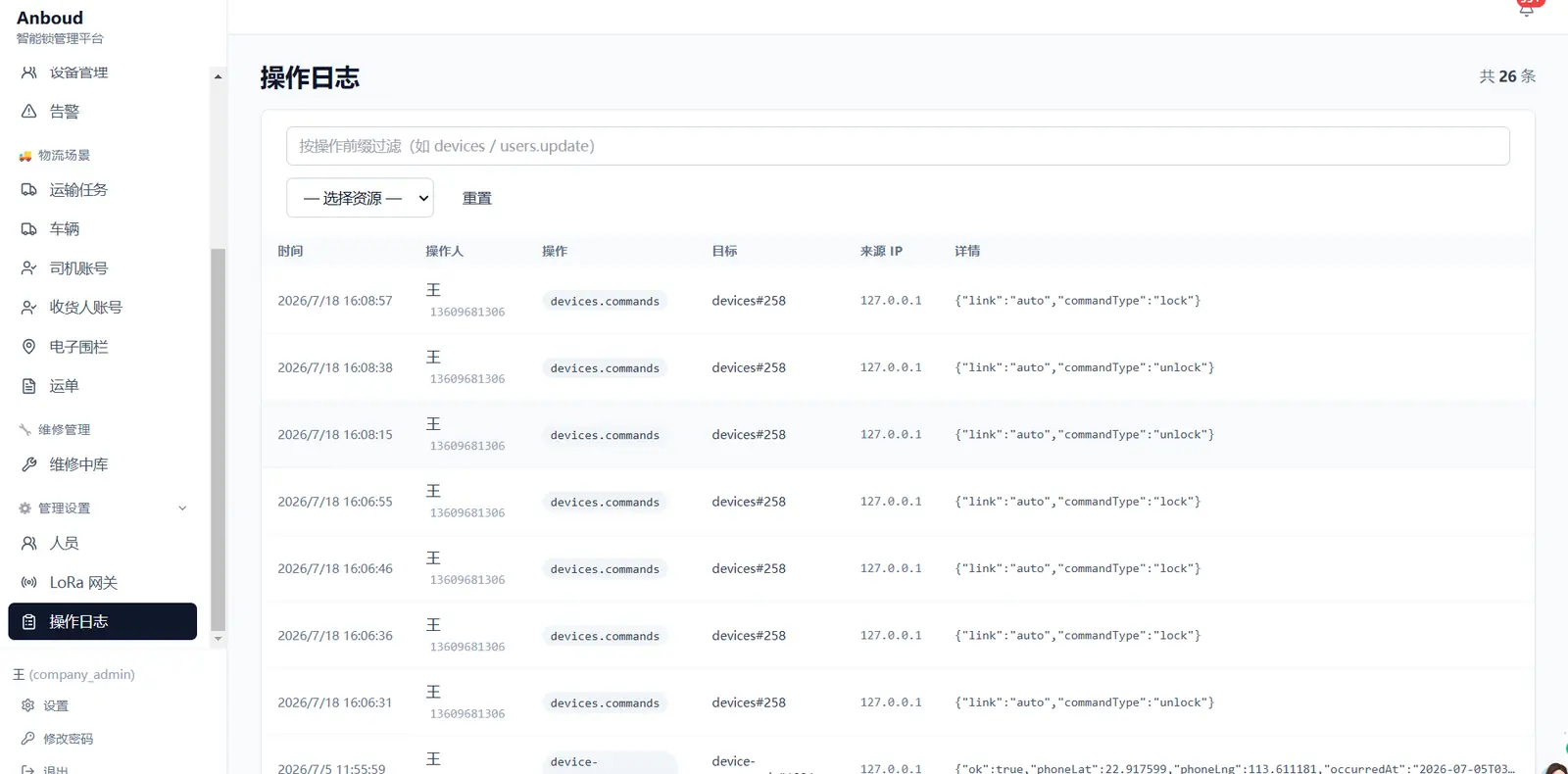

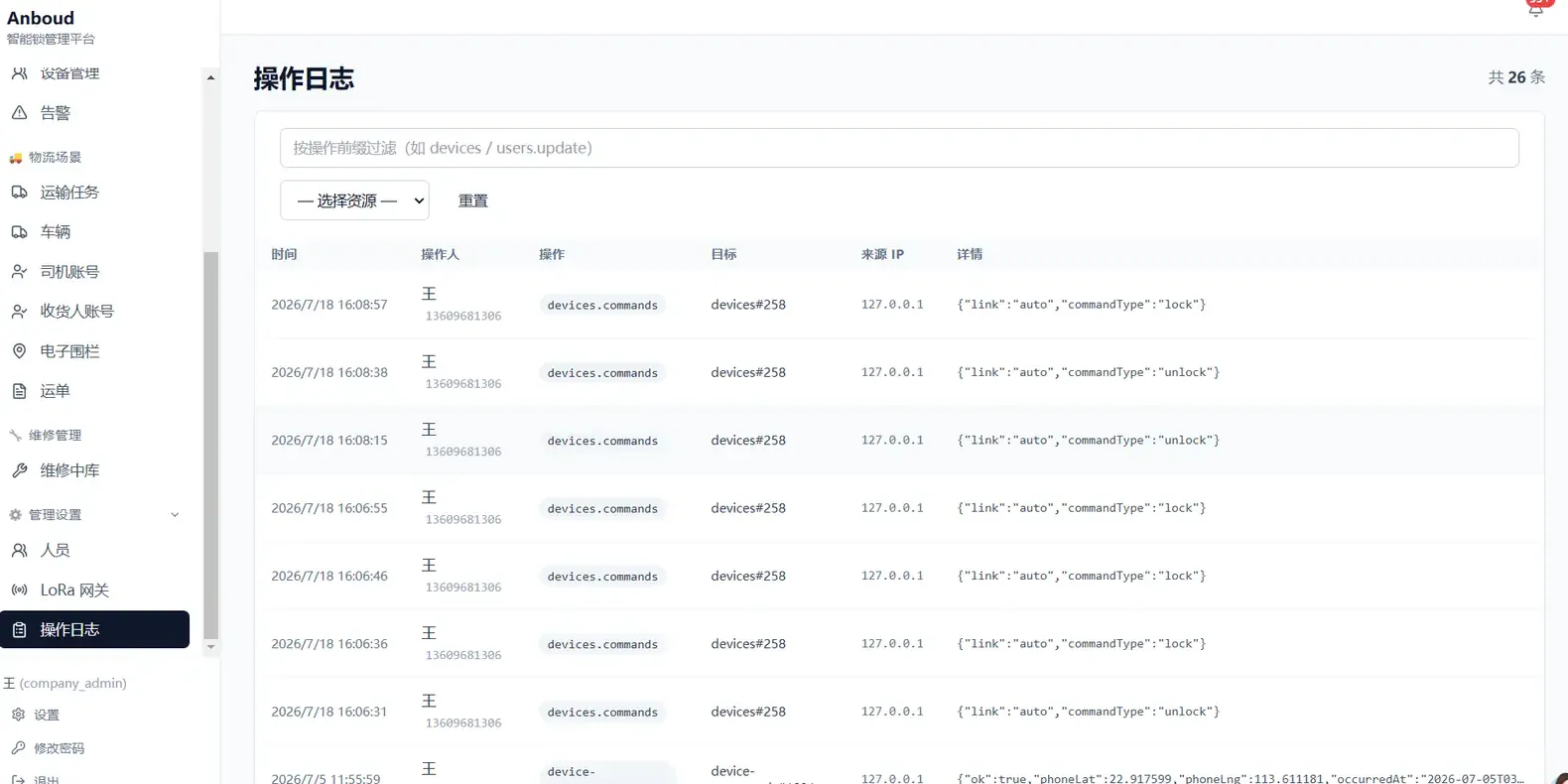

Audit ledger
Every action, archived.
| Role | What they can do |
|---|---|
| Operator admin | Production, handover, approvals, network alarms. |
| Customer admin | Org, devices, tasks, fences, accounts. |
| Driver / consignee | App tasks, BLE seal/unseal, exception reports. |

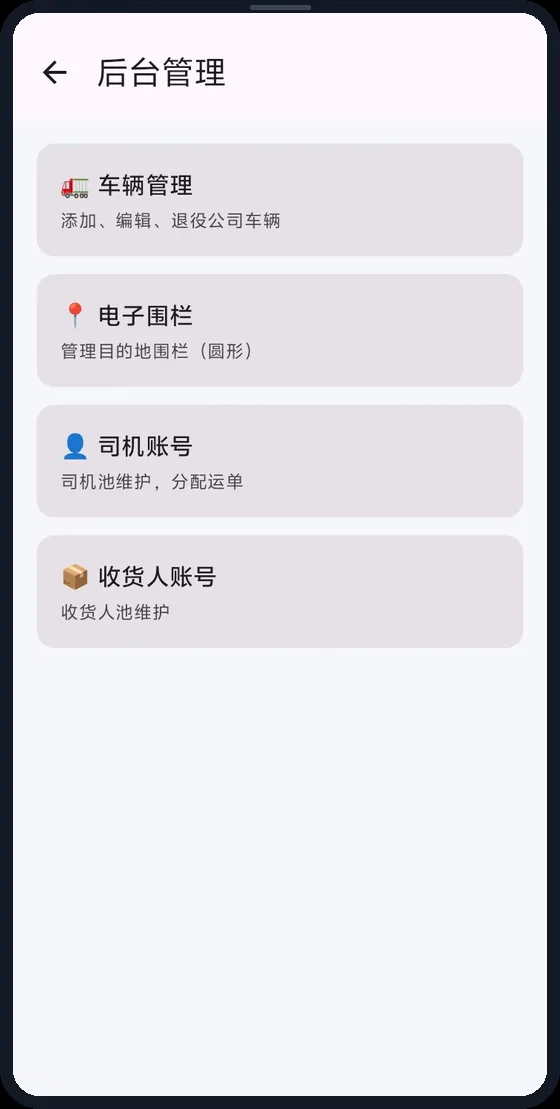

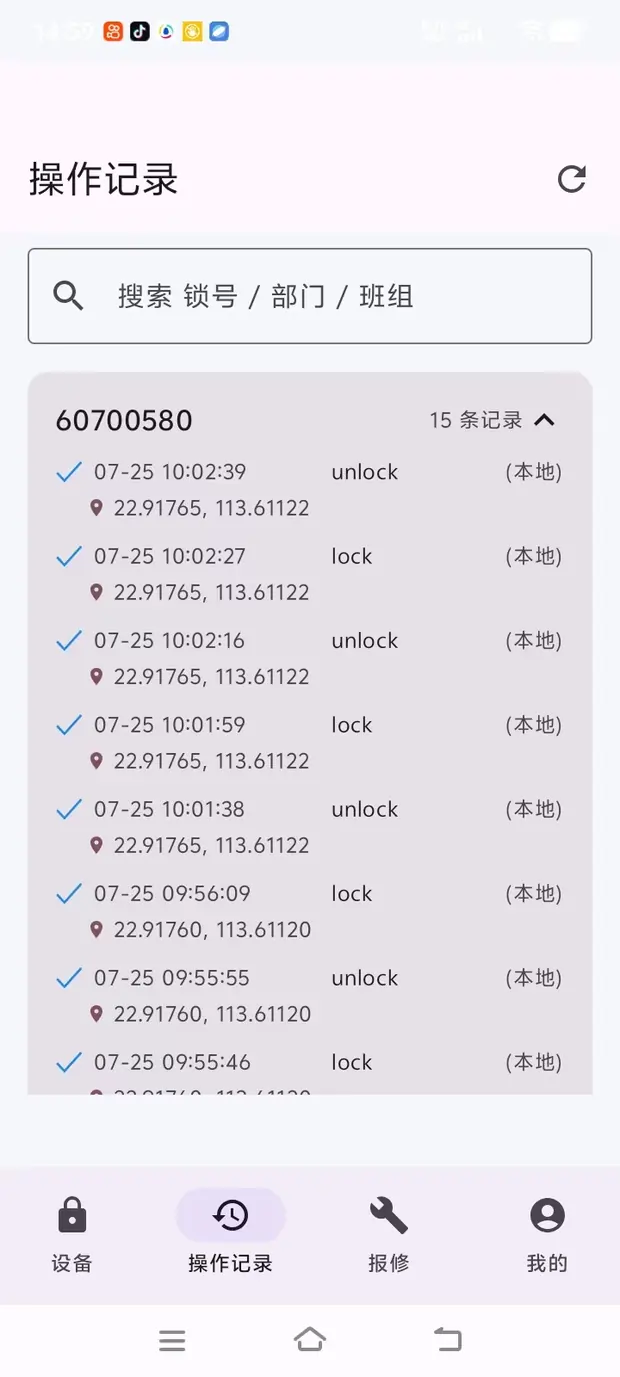

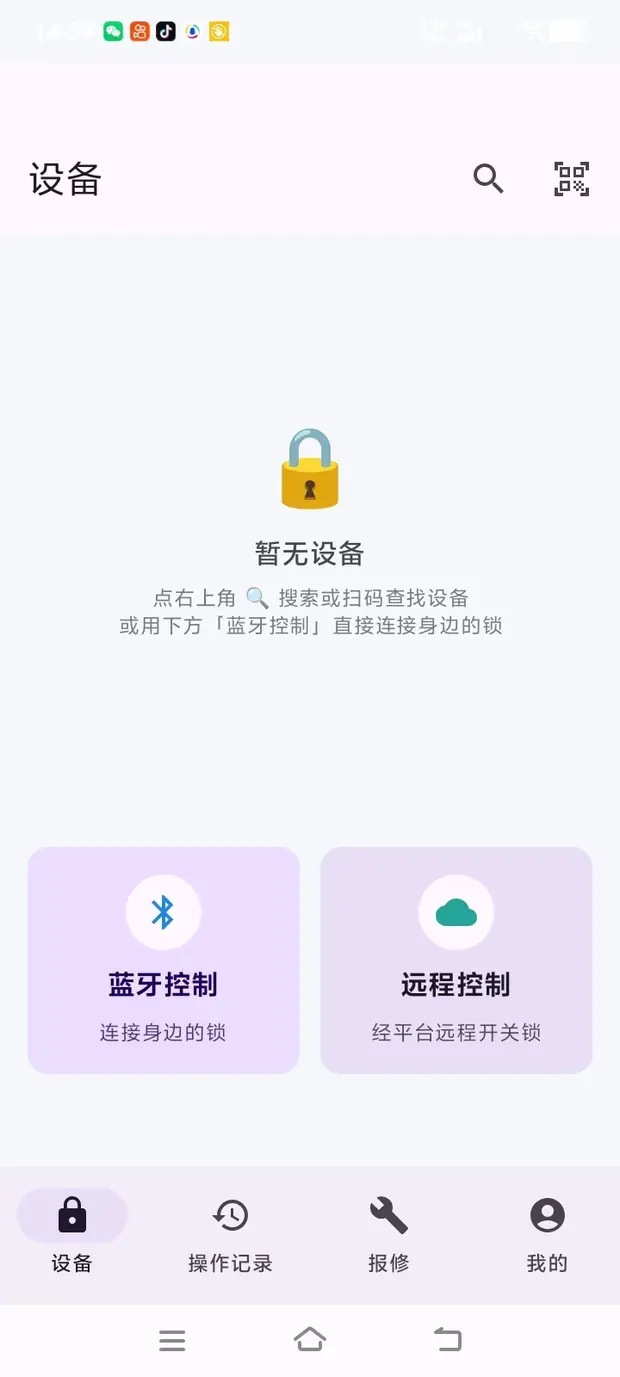

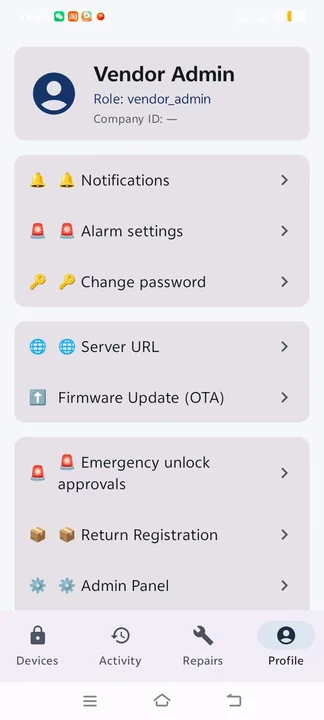

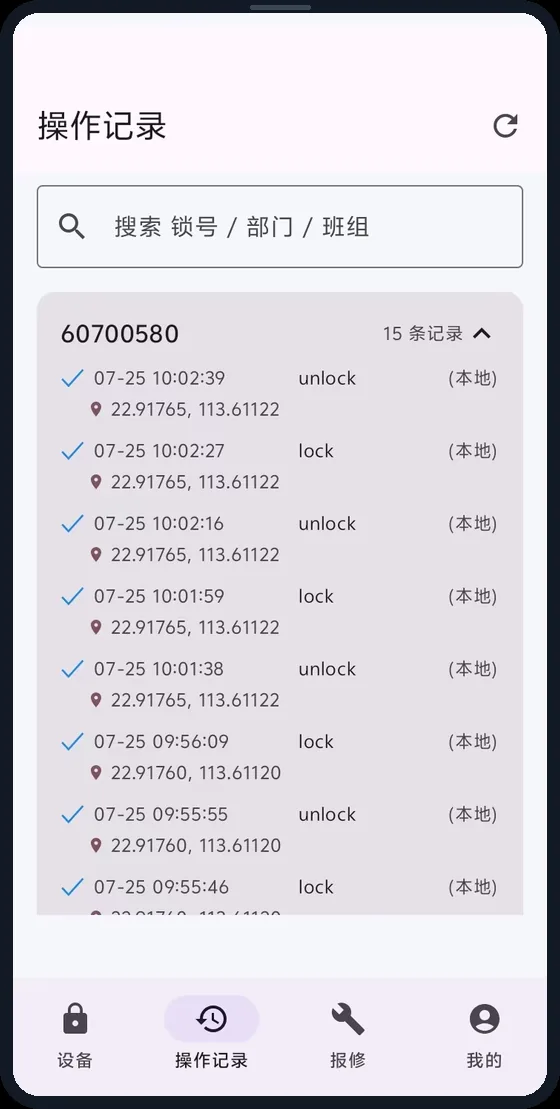

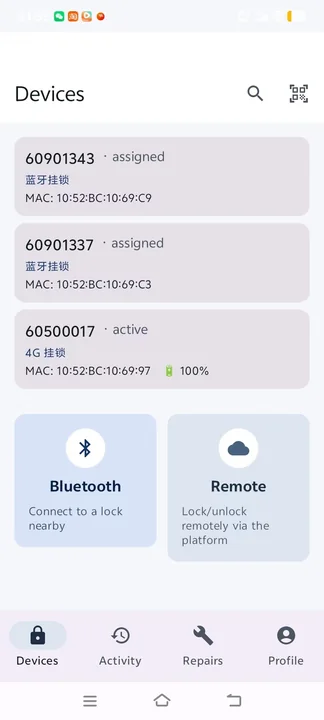

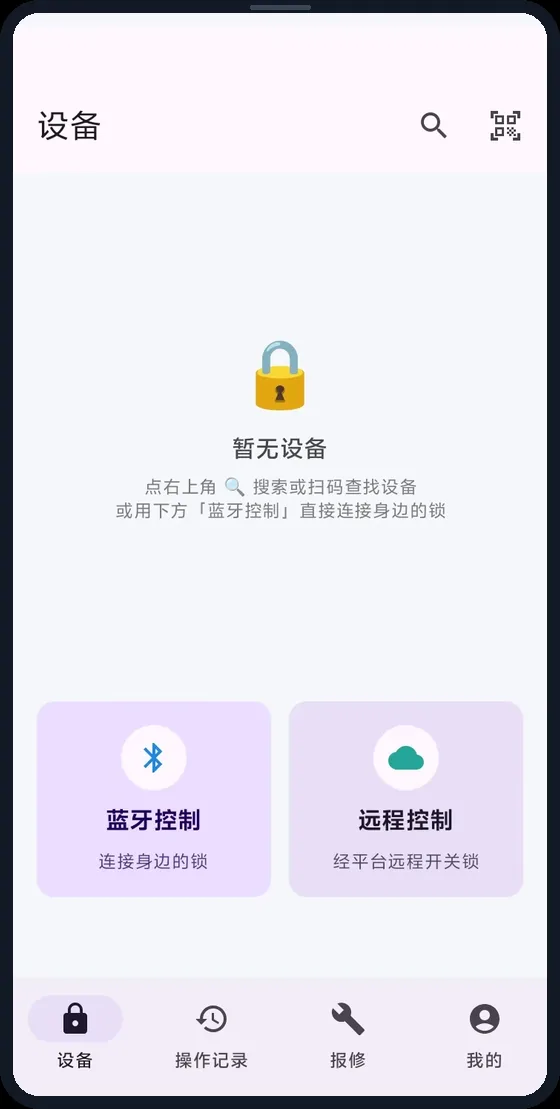

Mobile App
The control panel in the driver's pocket
One screen per job.
What the app handles
- Task inboxToday's jobs
- Bluetooth controlAES-128 channel
- Position capturePhone GPS
- Offline queueQueue & sync
- Exception reportingPhoto + note
Android BLE SDK available.
Solutions
Complete systems, by scenario
Delivered as one working system.
FlagshipLong-haul full-truck haulageExpressway trunk routes · multiple containers per vehicle · cross-province delivery
Vehicle gateway transport monitoring
Gateway carries all communication.
- Fit gateway, register locks
- Create the task
- Seal on loading
- GPS in transit, instant alarms
- Fence-verified unseal
1 SIMper vehicle
Monthslock runtime
2–3 wksto a live POC
Port, yard and warehouse freightContainers · box trucks · hazardous goods and cold chain
Cargo electronic sealing
A digital credential, not a plastic seal.
- Thread and seal
- Seal number on display
- Monitored while asleep
- Cut wakes and reports
- Fence-verified unseal
Secondscut to alarm
Reusableno consumable
IP67road & sea
Unattended field sitesTelecom base stations · substations · railway barriers · pump and PV stations
Unattended site access control
Keys move to the cloud.
- Fit and bind
- Issue work order
- Verified unlock
- Timed, escalating
- Auto-closed ledger
No wiringbattery powered
Revocablekeys expire
Full logwho, when, where
Gallery
Product photography
Real hardware, shot in studio.
Tip: Ctrl + wheel to zoom
Core Capabilities
Built in-house, end to end
Every layer is ours.
⚙️
Embedded firmware
One codebase, three radios.
🏭

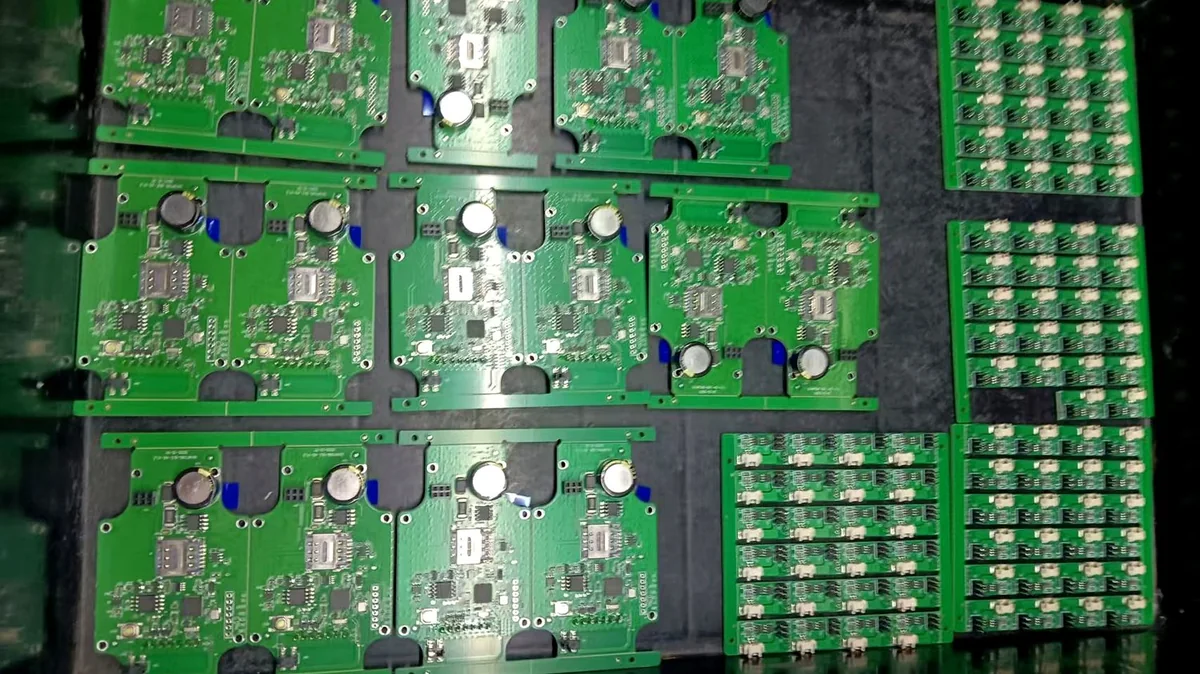

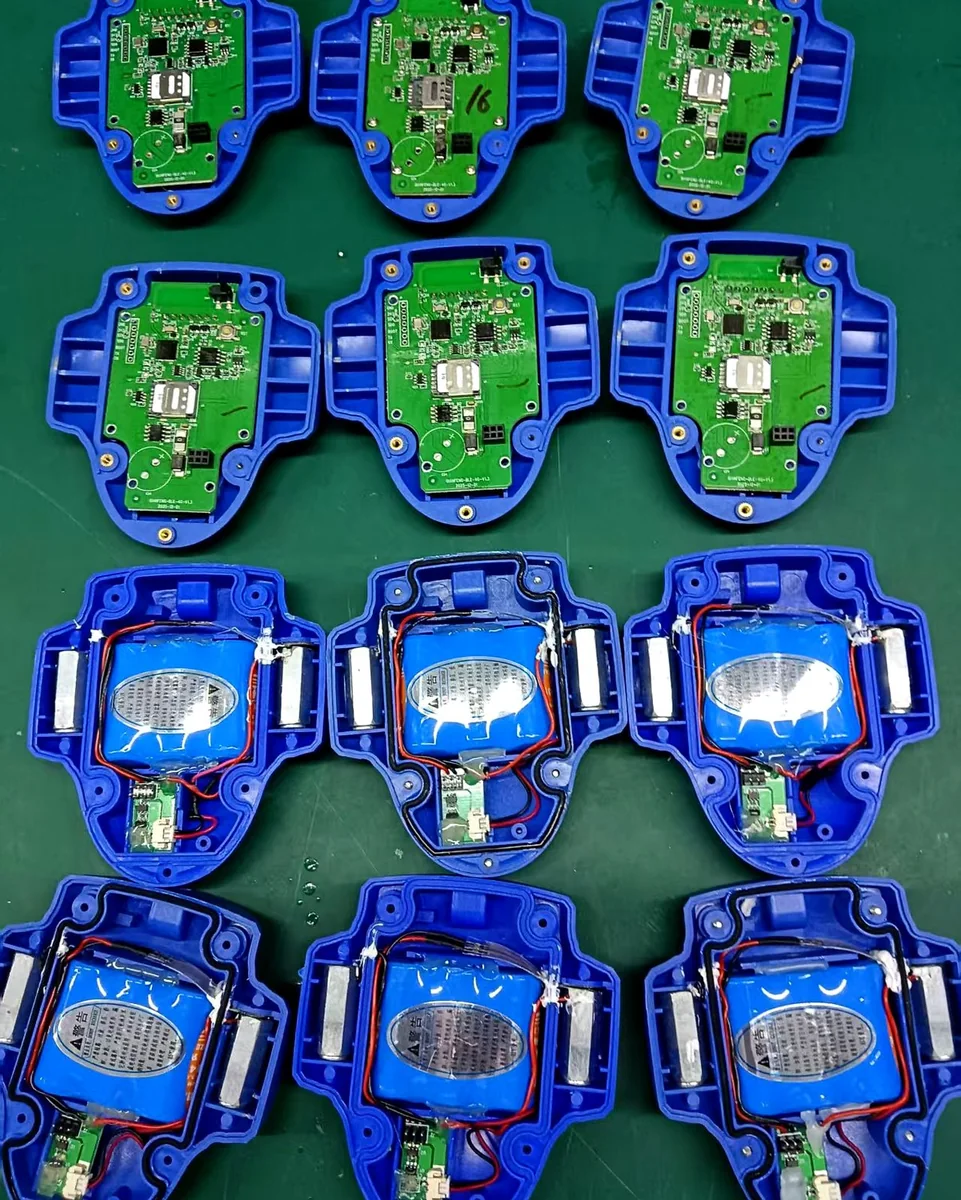

Hardware to mass production
Straight to the SMT line.
☁️
Cloud platform
Ours to extend.
🛡️
End-to-end encryption
Keys derived per session.
🔋
Ultra-low power
Months, not days.
🔄

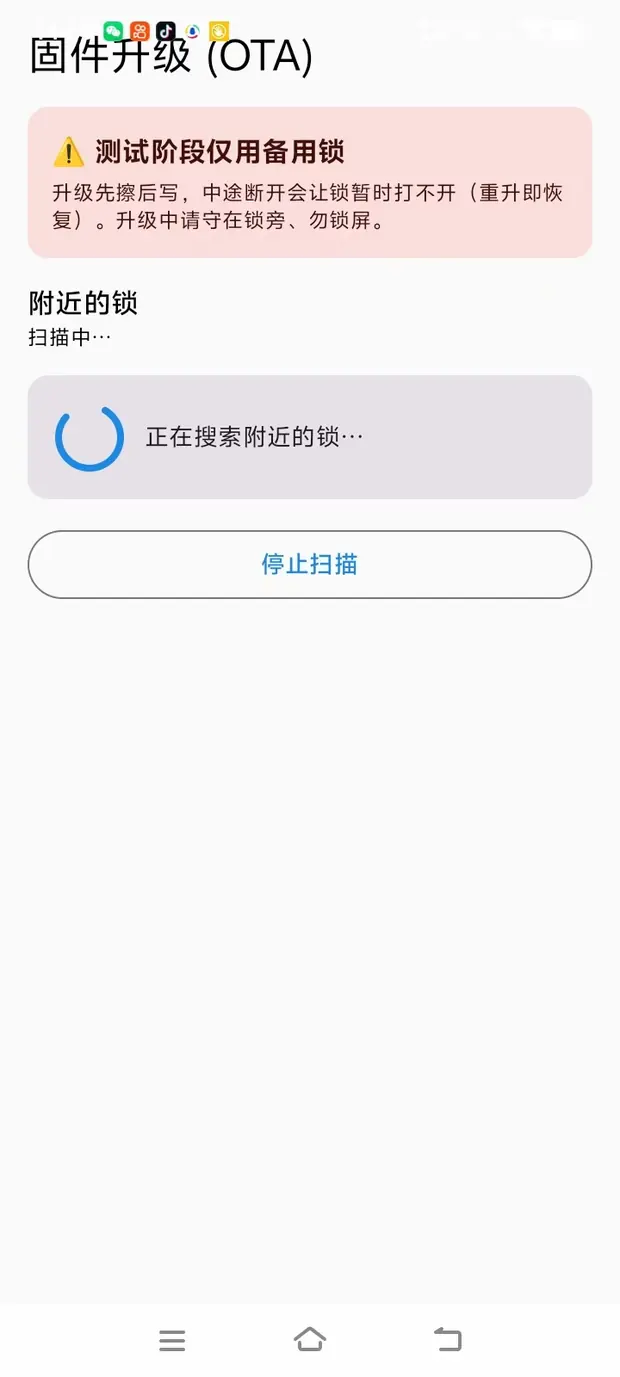

Remote upgrade
Improving after shipment.
OEM / ODM
From a one-page brief to volume delivery
Private label and deep customisation.
Assessment
3 working days.
Design
Frozen spec, parallel build.
Prototype
Real-route POC.
Production
Jigs, reports, OTA.
Company
About ORMA
Dongguan ORMA Smart Tech Co., Ltd.
——Founded (TBD)
——R&D team (TBD)
——Patents (TBD)
——Clients (TBD)
Tel+86 136 0968 1309
Emailwenhong@abdlock.com
AddressDongguan, Guangdong, China
Webwww.anboud.com
